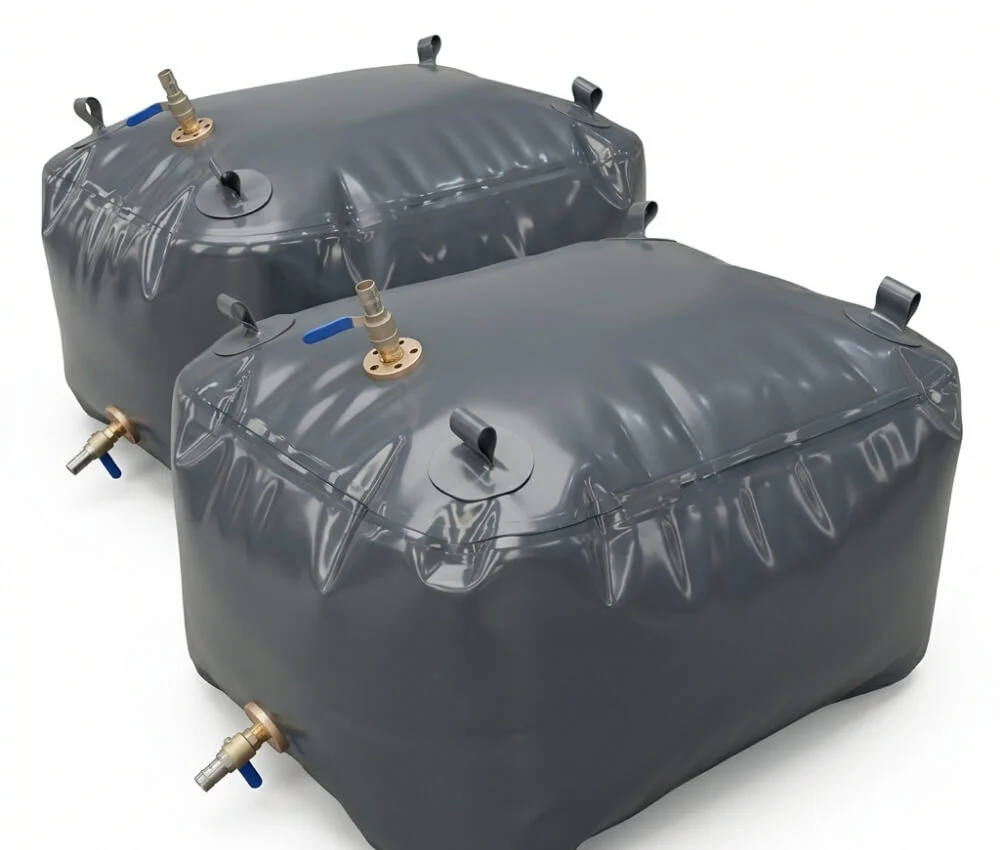

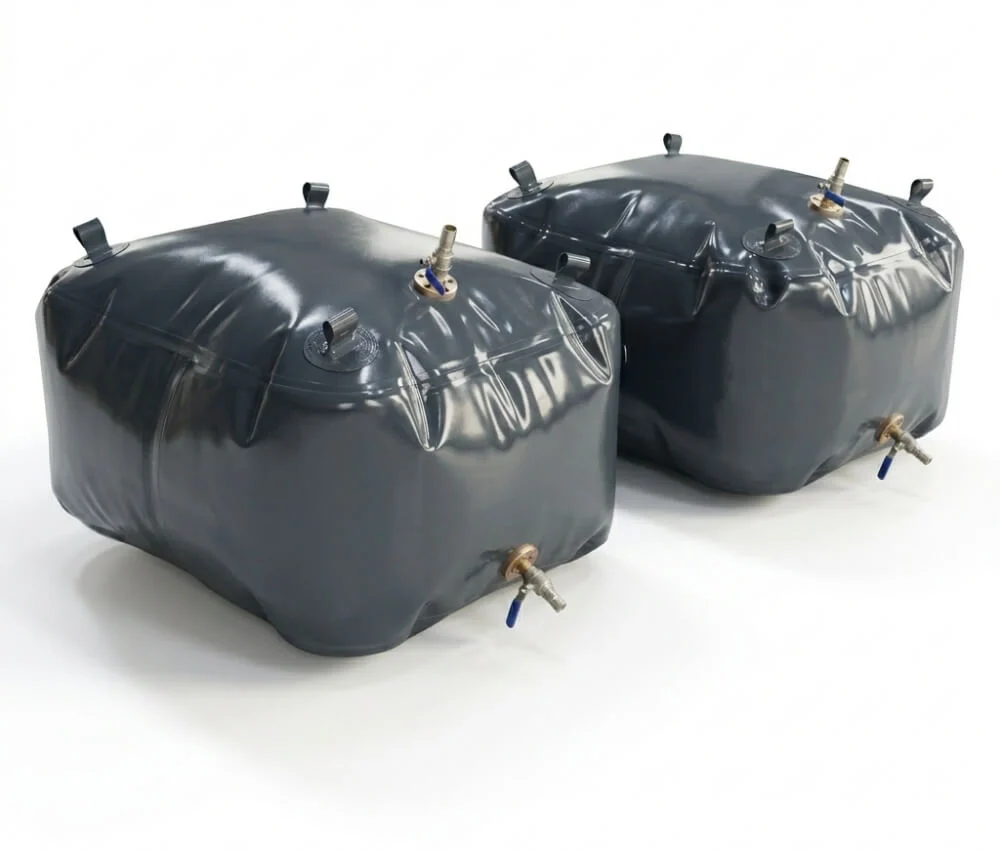

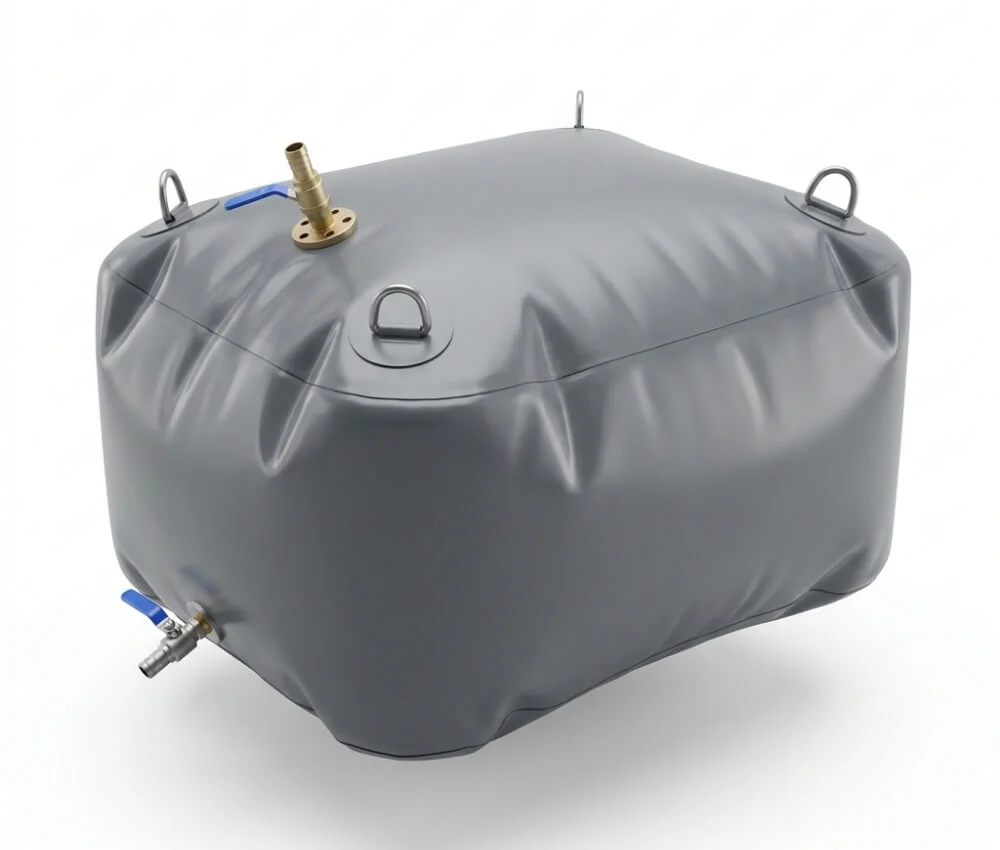

100 Gallon Fuel Bladder Collapsible TPU Tanks for Marine & Pickup
Engineered for dynamic surge resistance and spatial efficiency. Reclaim 90% of your deck or truck bed space when empty. Precision-built with application-specific TPU to safely extend your operational range without permanent structural modifications.
Product Details
Why Professionals Choose Red Mud Over Standard PVC？

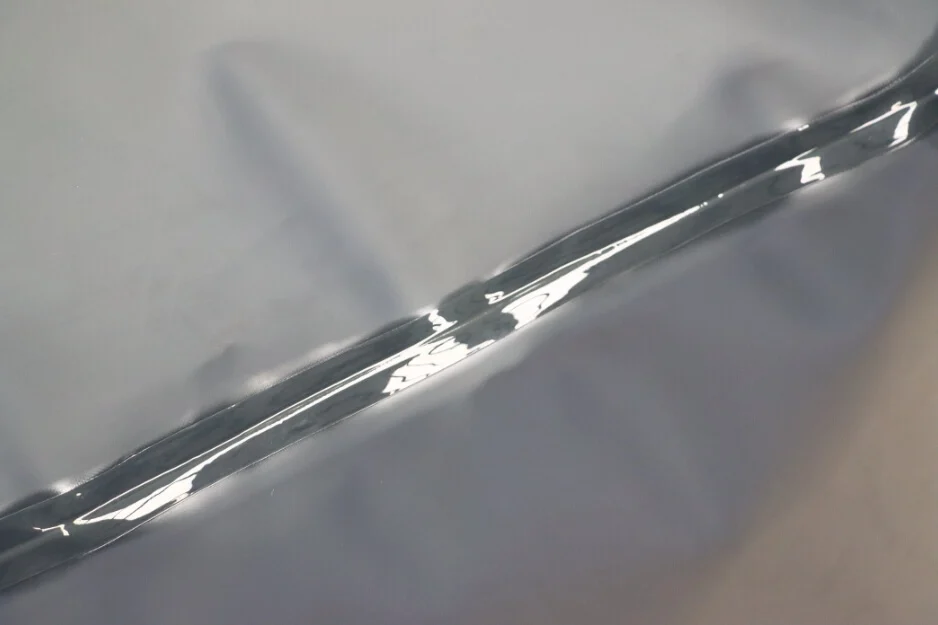

Double-Layer Welding Protection
We don’t rely on standard high-frequency welds. Our proprietary Double-Layer Welding technology adds a critical reinforcement strip over the primary hot-air weld. This structural redundancy absorbs the aggressive kinetic energy generated by fuel sloshing during high-speed marine navigation or rough terrain overlanding, delivering 99% industrial-grade leak prevention.

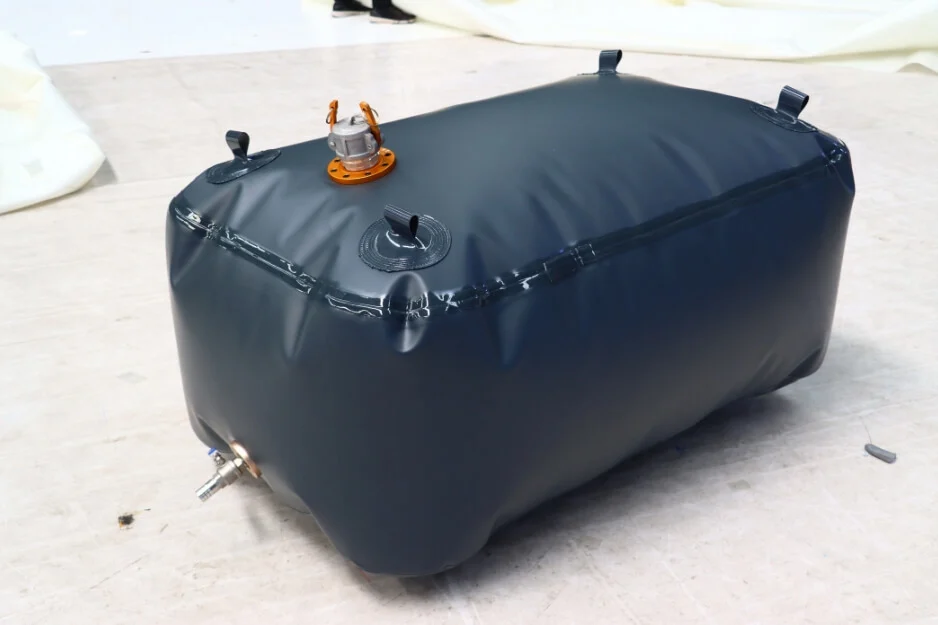

Heavy-Duty, Rust-Free Fittings
Plastic valves fail under stress. Metal fuel tanks rust in salt-fog environments. We equip every bladder with an Aluminum Alloy Flange and a Stainless Steel Ball Valve (≤ 2″). Paired with standard Camlock fittings, it ensures a tight, secure, and corrosion-free connection, effectively protecting your engine from rust contamination.

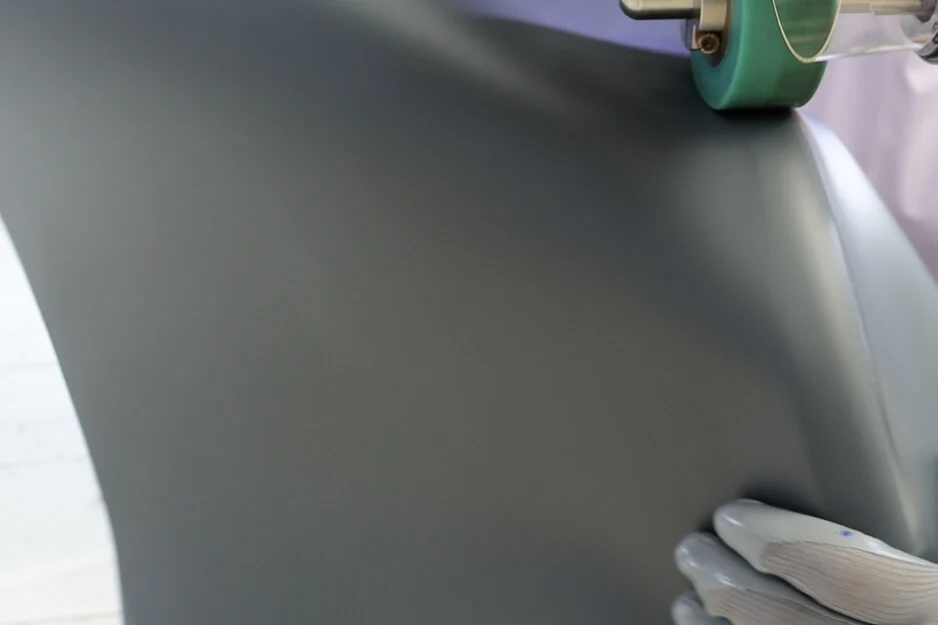

Application-Specific TPU (Diesel vs. Gasoline)
Not all fuels are chemically equal. We utilize strict material segregation: high-tensile Polyester TPU for your 400L Diesel Tank setups, and chemically resilient Polyether TPU for your Collapsible Gasoline Tank needs. Using 100% virgin material ensures zero degradation, preventing disastrous internal melting and protecting your valuable fuel payload.
Proudct Features
Why Upgrade to a Flexible Range Extender Bladder?
Agile Customization
Send us your LxWxH, and we issue a simple drawing within 24 hours. Precision where it matters, speed where you need it.
90% Space Recovery
Plug & Play Installation
Extreme Logistics ROI
Empty bladders weigh only 5-8 kg (1/10th of rigid metal tanks), drastically reducing international air freight and LCL shipping costs.
All-Weather Resilience
Rated for extreme temperatures from -30°C to +70°C, functioning flawlessly from the Australian Outback to the Arctic Circle.

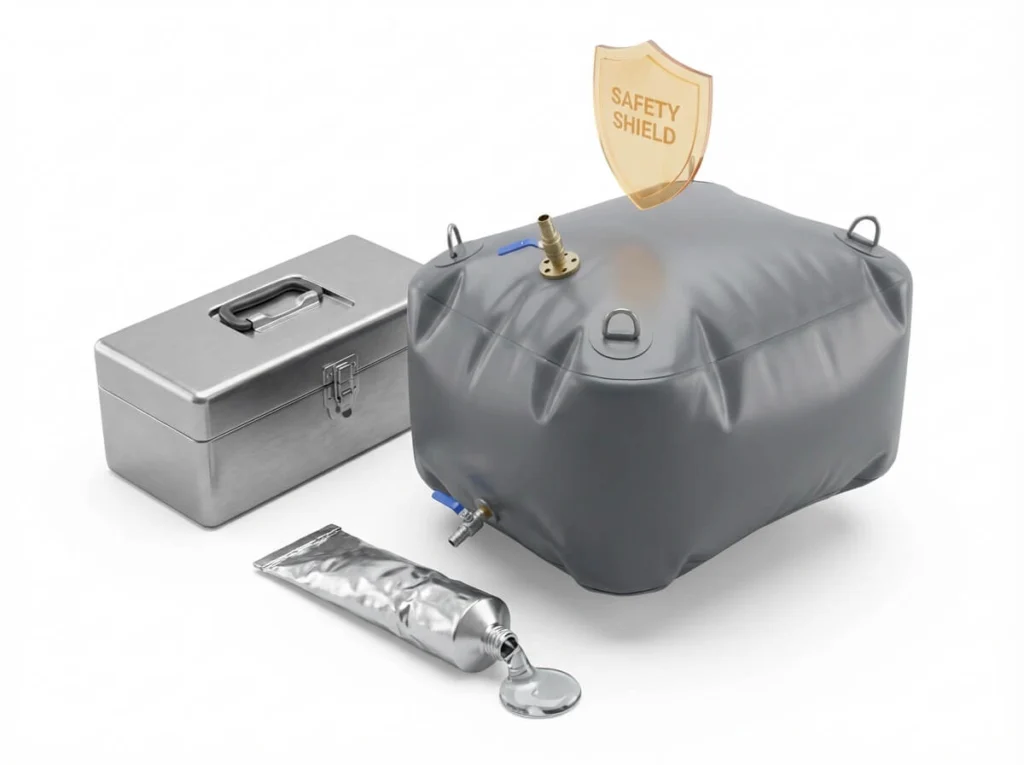

Fault-Tolerant Loop
Every order includes a Standard Repair Kit and instructional video, ensuring immediate on-site fixes for highly improbable puncture events.
100 Gallon Fuel Bladder Specifications
Hard Specs for the 100 Gallon Fuel Bladder
| Specification | Technical Details |
|---|---|
| Golden Capacity | 100 Gallon / 400 Liters (Custom range: 50L – 1000L) |
| Material | 1.0mm – 1.2mm Heavy-duty TPU (Polyester for Diesel / Polyether for Gasoline) |
| Empty Weight | Approx. 5 – 8 kg |
| Folded Volume | Approx. 0.04 m³ |
| Valve Configuration | Stainless Steel Ball Valve (≤ 2″) with Aluminum Alloy Flange |
| Connection Standard | Camlock fitting (Type C/F rapid joint available) |
| Temperature Range | -30°C to +70°C |
Versatile Applications Beyond Farming

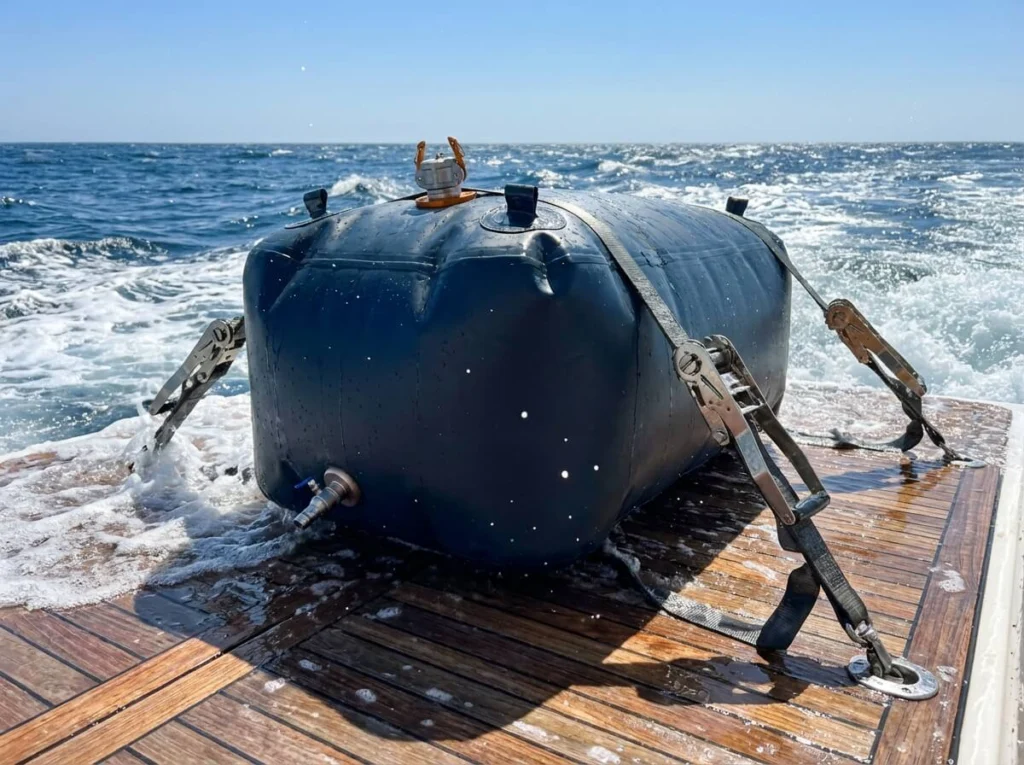

Marine Auxiliary Fuel
Deploy our Marine Fuel Bladder on boat decks or below-deck cavities to safely extend cruising range for offshore yachting, resisting salt-spray rust.

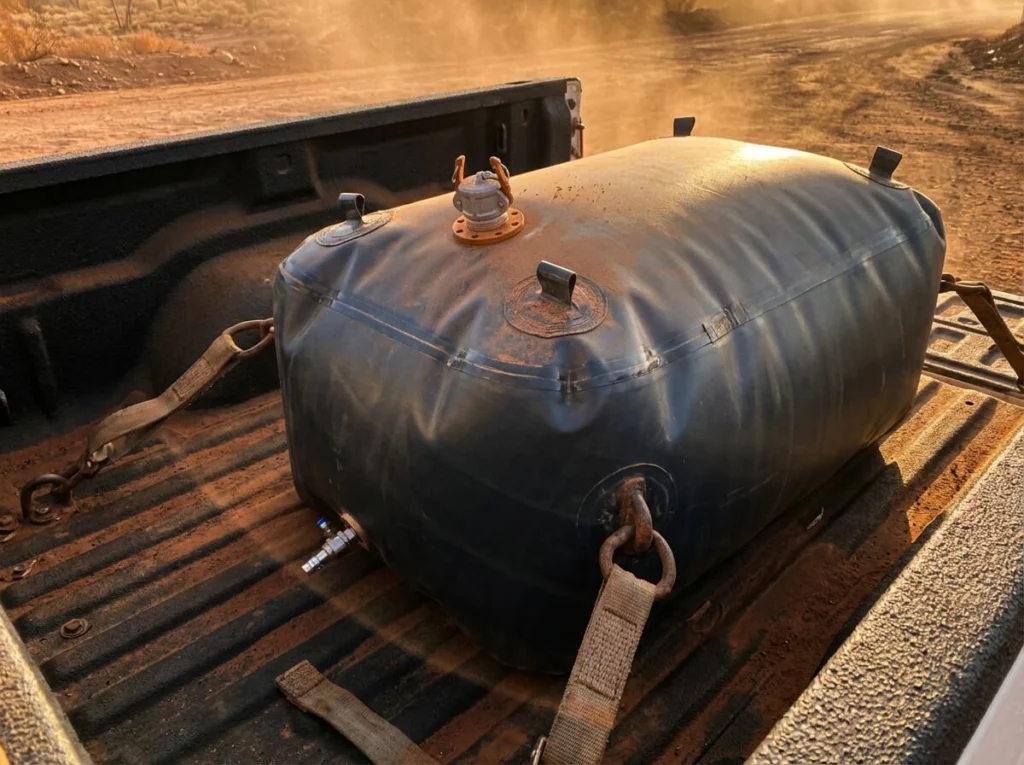

Pickup Truck Bed Refueling
Transform any 4×4 into a mobile refueling station. A perfect Pickup Truck Fuel Tank solution for remote agriculture, logging, or mining equipment.

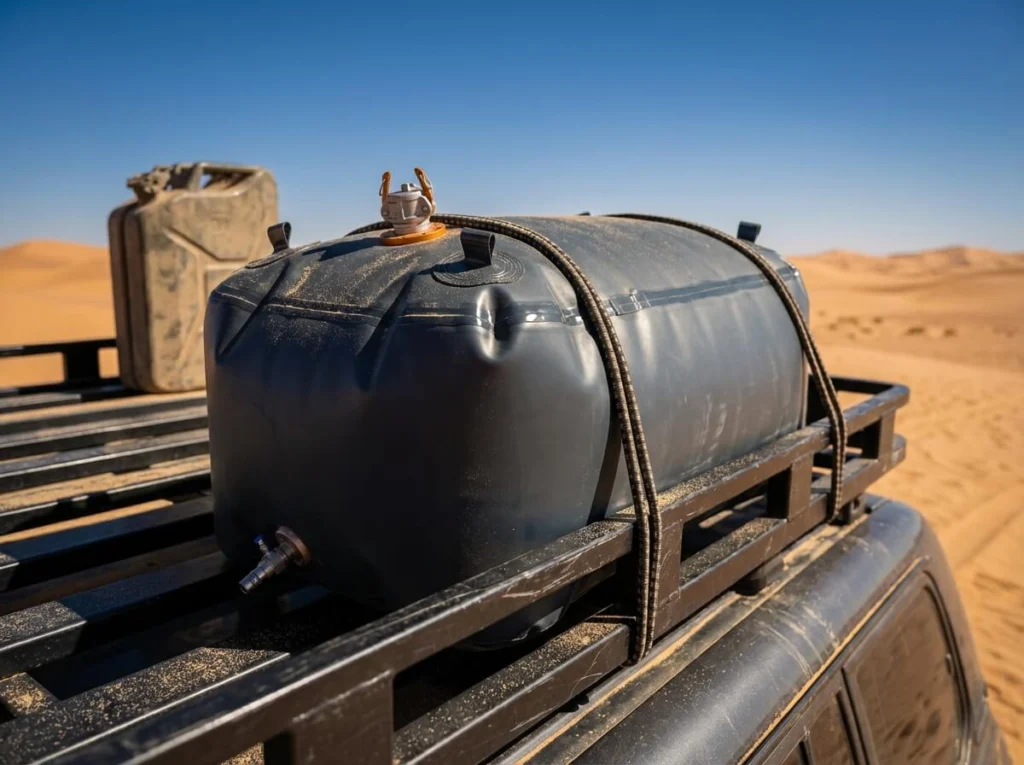

Off-Road Overlanding
Provide essential fuel reserves for expedition vehicles crossing vast deserts, engineered to withstand intense dynamic shock.

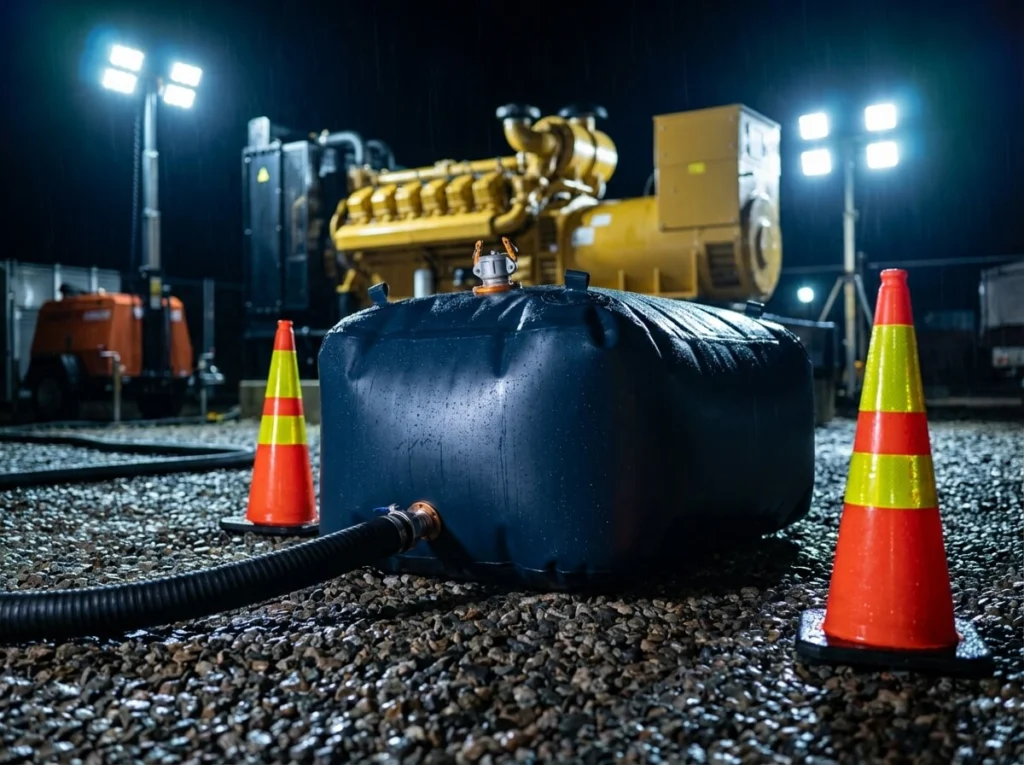

Emergency Generator Supply
Serve as a rapid-deployable diesel reservoir for backup power generators in hospitals or disaster relief camps.
Aviation & Helicopter Drops
Transport critical fuel supplies to inaccessible terrains via helicopter sling loads due to its low empty weight and high burst resistance.

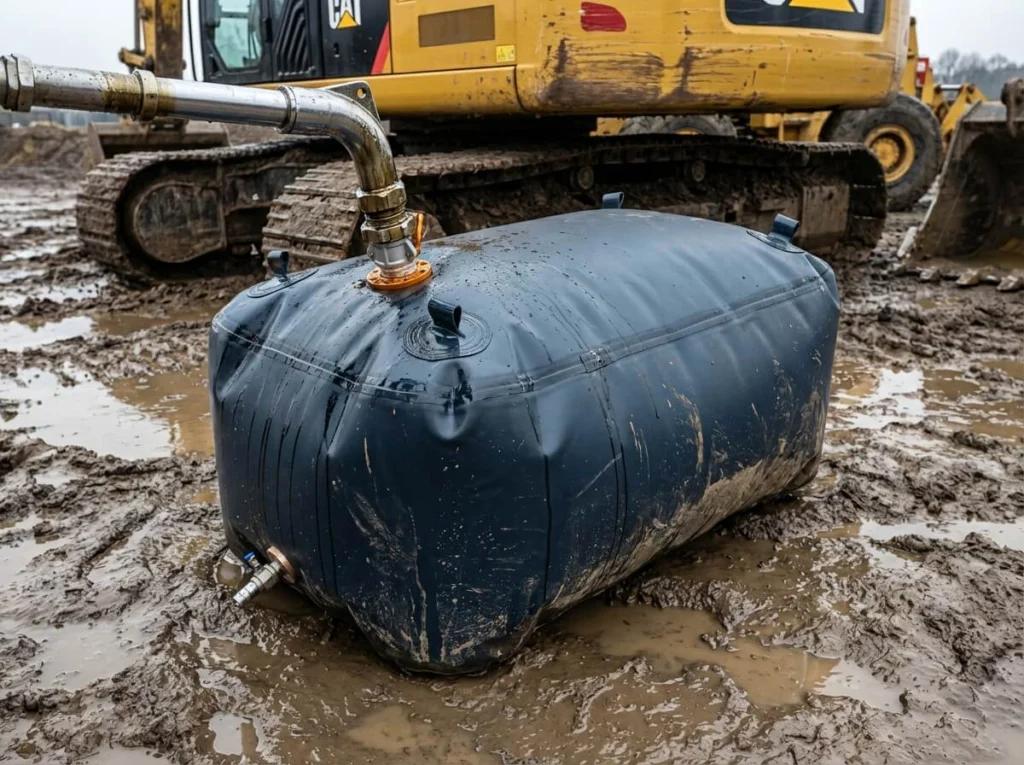

Construction Site Refueling
Feed heavy excavators directly on-site, eliminating the downtime of waiting for commercial fuel tanker trucks.
Trusted by Farmers & Projects Worldwide
Real field applications, verified export packaging, and cost-saving shipping solutions delivering to 50+ countries.
Indoor Barramundi Farm – Singapore (20 Sets).
Aquaponics System Setup – USA (Diameter 6m)
Real Loading Photo
Frequently Asked
Questions
Answers to common queries regarding installation and materials.
Related products
Company Advantages
Why Choose Bancy
As a direct source factory with 20+ years of manufacturing expertise, Bancy Solutions excels in delivering leak-proof, durable, and cost-effective liquid storage solutions. Our advantage lies in unique Double-Layer Reinforced Seam Technology ensuring superior reliability and longevity, backed by CE Certification.
